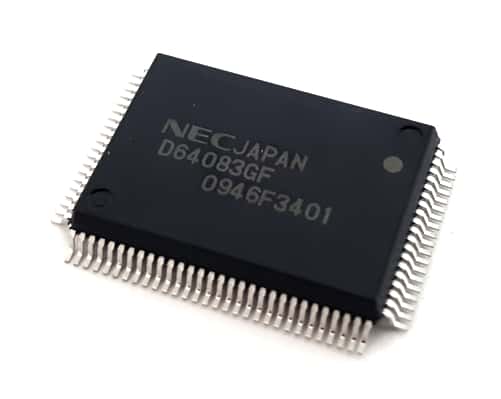

UPD64083GF-3BA Surface Mount 3-D Y/C Separation IC NEC®

UPD64083GF-3BA Surface Mount 3-D Y/C Separation IC NEC®

Manufacturer: NEC Electronics® / Renesas®
Part Number: UPD64083GF-3BA
Voltage: 2.5 / 3.3
Package: QFP
Mounting: Surface Mount
Lead/Terminal Type: Gull Wing
Number Leads/Terminals: 100
Color: Black
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder
Size (mm): 19.88 x 13.5

Price: $8.00
100 available for immediate delivery
Code: IC946APS07
Weight: 0.02oz ONZ
