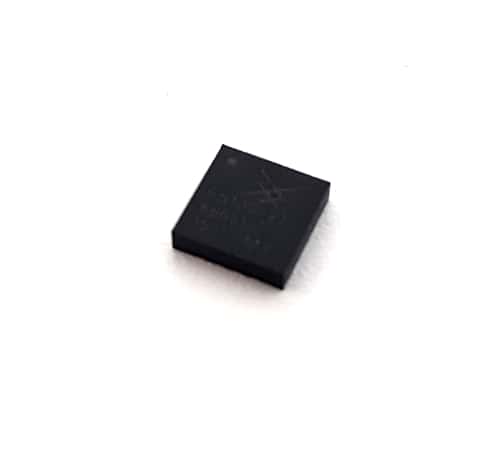

SKY65120-21 SMT 2W RF Power Amplifier IC 2110-2170MHz Skyworks®

SKY65120-21 SMT 2W RF Power Amplifier IC 2110-2170MHz Skyworks®

Manufacturer: Skyworks®
Part Number: SKY65120-21
Amps: .47
Voltage: 5
Watts: 2
Package: MCM
Mounting: Surface Mount
Lead/Terminal Type: Pad
Number Leads/Terminals: 20
Color: Black
Temperature: 85
RoHS Compliant: Yes
Obsolete: Yes
Shape: Square
Termination Method: Solder
Size (mm): 6 x 6 x .9

Price: $5.00
542 available for immediate delivery
Code: IC947APS07
Weight: 0.01oz ONZ
