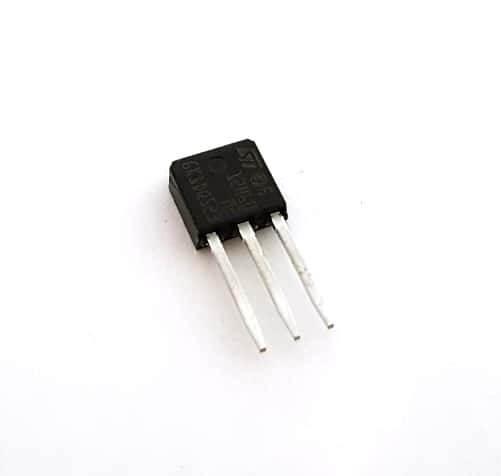

STU12N60M2 9A 600V N-Channel Power MosFET STMicroelectronics®

STU12N60M2 9A 600V N-Channel Power MosFET STMicroelectronics®

Manufacturer: STMicroelectronics®
Part Number: STU12N60M2
Capacitance (uF): .000538
Amps: 9
Voltage: 600
Watts: 85
Ohms: .45
Package: IPAK
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 3
Color: Black
Temperature: -55 to 150°C
RoHS Compliant: Yes
Pitch (mm): 2.28
Termination Method: Solder
Size (mm): 6.4 x 2.2 x 6

Price: $1.25
639 available for immediate delivery
Code: IC969APT08
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-99$1.25
100+$1.00
