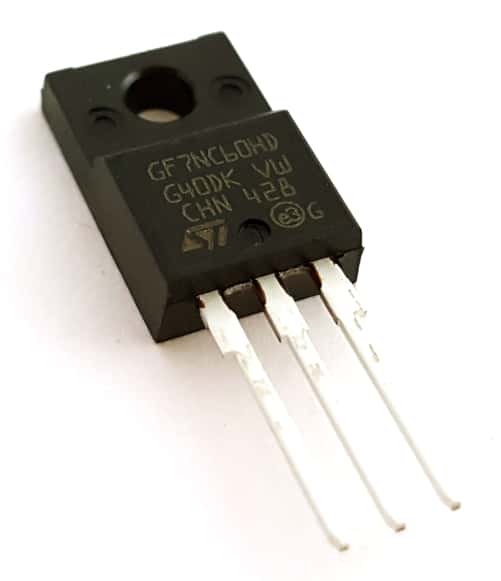

STGF7NC60HD 10A 600V IGBT N-Channel Transistor STMicroelectronics®

STGF7NC60HD 10A 600V IGBT N-Channel Transistor STMicroelectronics®

Manufacturer: STMicroelectronics®
Part Number: STGF7NC60HD
Amps: 10
Voltage: 600
Watts: 25
Package: TO-220FP
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 3
Color: Black / Silver
Temperature: -55 to 150°C
RoHS Compliant: Yes
Obsolete: Yes
Termination Method: Solder

Price: $1.75
800 available for immediate delivery
Code: IC974APT09
Weight: 0.06oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

PowerMESH™ IGBT Transistors with Ultrafast Diodes
OBSOLETE

Features:
- Low on-voltage drop (VCE(sat))
- Off losses include tail current
- Losses include diode recovery energy
- High frequency operation up to 70 kHz
- Very soft ultra fast recovery anti parallel diode

Maximum Ratings (TC-25°C)
Collector-Emitter Voltage (VGS = 0): 600V
Emitter-Collector Voltage: 20.0V
Collector Current (continuous): 10.0A
Collector Current (pulsed): 50.0A
Diode RMS Forward Current: 20.0A
Power Dissipation: 25.0W

Collector-Emitter Breakdown Voltage: 600V
Collector-Emitter Saturation Voltage: 2.5V
Collector Cut-Off Current: 10.0uA
Gate Charge: 35.0nC
Reverse Recovery Time: 37.0ns
Switching Energy: 95uJ(on) / 115uJ (off)

Manufactured by: STMicroelectronics®
Part Number: STGF7NC60HD

Full Datasheet: STMicro N-Ch IGBT 25W

RoHS Compliant
