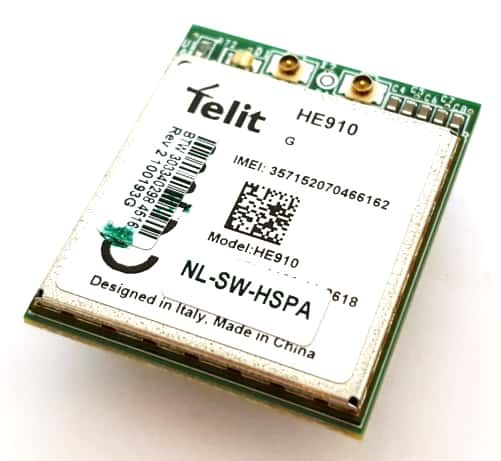

NL-SW-HSPA Cellular Modem NimbeLink® HE910G Telit®

NL-SW-HSPA Cellular Modem NimbeLink® HE910G Telit®

Manufacturer: NimbeLink® / Telit®
Part Number: NL-SW-HSPA
Voltage: 3.5 - 4.3
Package: Dip
Mounting: PCB / Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 20
Color: White / Green
Temperature: -40 to 85°C
RoHS Compliant: Yes
Obsolete: Yes
Shape: Rectangle
Row Spacing (mm): 22
Pitch (mm): 2
Termination Method: Solder
Size (mm): 29.0 x 33.60 x 6.63

Price: $100.00
Sorry, we are currently sold out of
'NL-SW-HSPA Cellular Modem NimbeLink® HE910G Telit®'.
Please check back later.
Code: IC980APT10
Weight: 0.30oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

3G Global HSPA Embedded Cellular/GPS Modems
Telit xE910-series modules power NimbeLink’s Skywire™ embedded modems to deliver fast, reliable, cellular M2M connectivity

OBSOLETE - Not Recommended for New Design
Antenna NOT Included

Features:
- 3G GSM/GPRS/HSPA+ modem
- Onboard GPS & GLONASS receiver for satellite location services
- Carrier certification complete, no additional work required
- Removable SIM card slot
- Antenna independent certification increases selection flexibility
- Connectivity via Serial UART or USB
- Supports a wide range of I/O voltages for design flexibility

Data Rate:
- Download: 21 Mbps
- Upload: 5.76 Mbps
Bands: B1, B2, B4, B5, B8
Input Voltage: 3.5V-4.3V
I/O Voltage: 1.65V-5.5V
Current Consumption
Average Power: 110mA
Peak Power: 215mA
Idle: 19.0mA
Temperature: -40 to 85°C

Dimensions (excluding pin height): 29.0 x 33.60 x 6.63mm (1.14" x 1.32" x 0.26")

Manufactured by: NimbeLink® / Telit®
Part Number: NL-SW-HSPA / HE910G

Full Datasheet: NimbeLink® Global Cellular Modem
Full Datasheet: Telit® HE910 Series Module

RoHS Compliant
