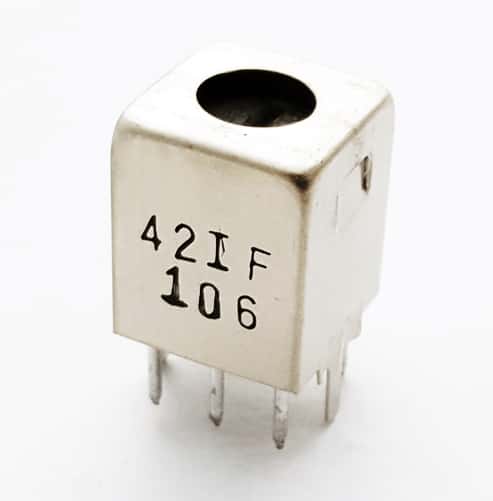

680uH IF Audio Transformer Tuning Inductor Xicon 42IF106

680uH IF Audio Transformer Tuning Inductor Xicon 42IF106

Manufacturer: Xicon
Part Number: 42IF106
Capacitance (uF): .00018
Ohms: 20,000
Inductance (uH): 680
Mounting: PC Board
Number Leads/Terminals: 5
Color: Silver
Termination Method: Solder

Price: $1.50
42 available for immediate delivery
Code: IN038BPP06
Weight: 0.10oz ONZ
