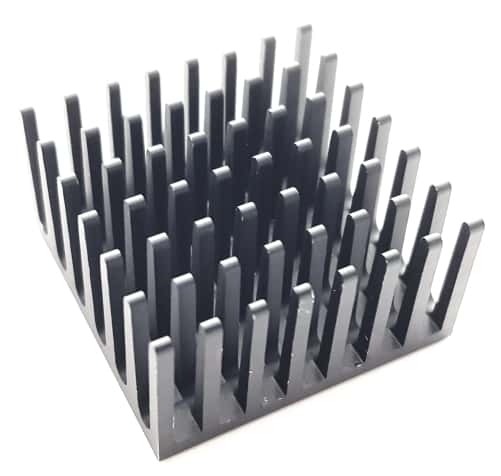

BGA Pin Fin Heat Sink w/Tape Aavid Thermalloy 2327B-TACHG

BGA Pin Fin Heat Sink w/Tape Aavid Thermalloy 2327B-TACHG

Manufacturer: Aavid Thermalloy
Part Number: 2327B-TACHB
Material: Aluminum
Color: Black
Shape: Square

Price: $2.00
124 available for immediate delivery
Code: J215BPP09
Weight: 0.30oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

BGA Heat Sinks with Adhesive
# of Fins: Length 9, Width 7

This part comes with T405R Chomerics Tape for Metal surfaces

Features:
- Tape mounting saves board space by eliminating mounting holes
- Convenient peel and stick assembly is quick and clean
- Pin Fin array allows omni-directional airflow to maximize heat dissipation

Thermal Resistance: 0.50
Adhesive: Acrylic
Carrier: Aluminum
Finish: Black Anodize

Thermal Performance:
Natural Convection: 23.40 (based on a heatsink temperature rise of 75°C above ambient)
Forced convection: 7.43 based on fully ducted airflow entering at 1.0 m/s (197 LFM).

Dimensions
Width: 27.90 (1.10")
Length: 28.07 (1.105")
Height: 15.20 90.60")
Base Thickness: 3.81 (0.15")
Fin Thickness: Length 1.65, Width 1.65 (0.65")

Manufactured by: Aavid Thermalloy
Part Number: 2327B-TACHG

Full Datasheet: Aavid Thermalloy Heatsinks
