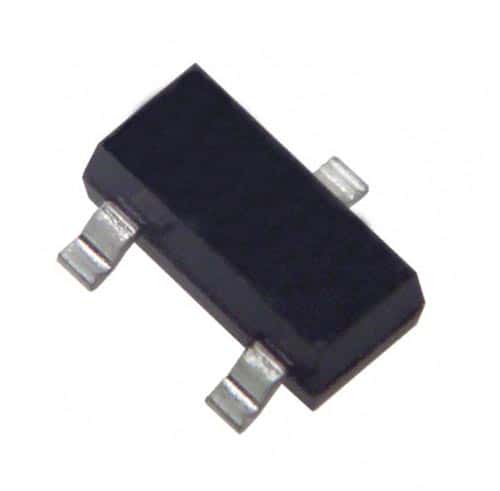

MMBZ5257BLT1 SMT Zener Diode Motorola

MMBZ5257BLT1 SMT Zener Diode Motorola

Manufacturer: Motorola
Part Number: MMBZ5257BLT1
Watts: .225
Package: SOT23
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 3

Price: $0.20
3000 available for immediate delivery
Code: J235APF07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.20
10-99$0.18
100-499$0.15
500+$0.10
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Zener Voltage Regulator Diodes

Features
- 225mW Rating on FR-4 or FR-5 Board
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (>16 KV) per Human Body Model

Maximum Ratings
FR−5 Board, @ TA = 25°C:
Total Power Dissipation: 225mW
Derate above 25°C: 1.8mW/°C
Thermal Resistance-Junction to Ambient: 556°C/W
Alumina Substrate @ TA = 25°C:
Total Power Dissipation: 300mW
Derate above 25°C: 2.4mW/°C
Thermal Resistance-Junction to Ambient: 417°C/W
Junction and Storage Temperature Range: -65°C to 150°C

Electrical Characteristics (VF=0.9V max. @ IF=10mA unless otherwise noted):
Zener Voltage (VZ @ IZT = 3.8mA): 31.35V min. ; 33.0V nom. ; 34.65V max.
Zener Impedance (ZZT @ IZT = 3.8mA): 58Ω
Zener Impedance (ZZK @ IZK = 0.25mA): 700Ω
Leakage Current (IR @ VR = 25V): 0.1uA

Manufactured by: Motorola
Part Number: MMBZ5257BLT1

Full Datasheet: Motorola MMBZ5257BLT1
