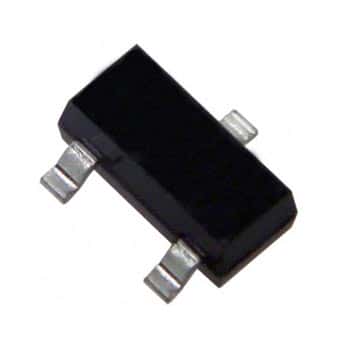

BAT54S 200mA 0.8V SMT Diode Fairchild

BAT54S 200mA 0.8V SMT Diode Fairchild

Manufacturer: Fairchild
Part Number: BA754S
Amps: .2
Voltage: .8
Package: SOT23
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 3
RoHS Compliant: Yes

Price: $0.12
21000 available for immediate delivery
Code: J257BPF08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.12
10-99$0.10
100-499$0.08
500+$0.04
