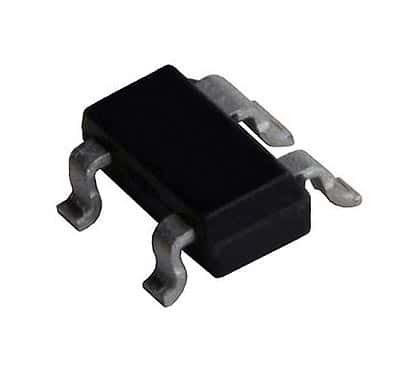

MIC5203-5.5.0BM4 Low-Dropout Regulator IC Micrel

MIC5203-5.5.0BM4 Low-Dropout Regulator IC Micrel

Manufacturer: Micrel
Part Number: MIC5203-5.0BM4
Amps: .08
Voltage: 5
Package: SOT143
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 4

Price: $0.50
2300 available for immediate delivery
Code: J288APF07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.45
100-499$0.40
500+$0.35
