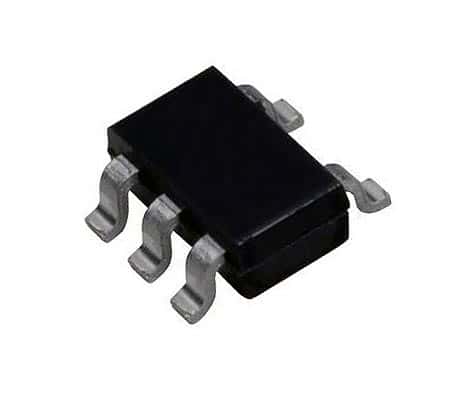

SN74AHCT1G125DBVR SMT Logic IC Texas Instruments®

SN74AHCT1G125DBVR SMT Logic IC Texas Instruments®

Manufacturer: Texas Instruments®
Part Number: SN74AHCT1G125DBVR
Package: SOT23-5
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 5

Price: $0.35
1090 available for immediate delivery
Code: J290APF07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.35
10-99$0.30
100+$0.25
Quantity:
