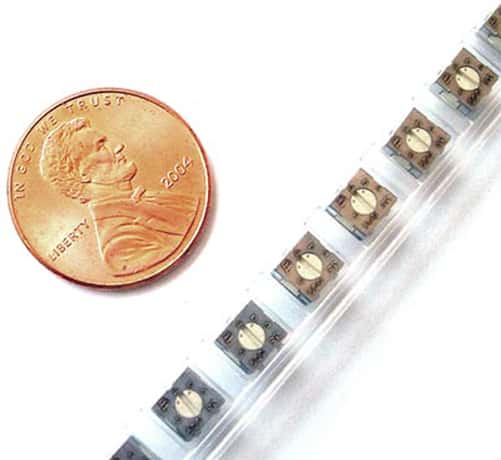

10K ohm SMT Trim Pot Bourns 3313J-1-103E

10K ohm SMT Trim Pot Bourns 3313J-1-103E

Manufacturer: Bourns
Part Number: 3313J-1-103E
Ohms: 10000
Tolerance (%): 20
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 3
Shape: Square
Size (mm): 3

Price: $1.35
244 available for immediate delivery
Code: J295APF08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.35
10-99$1.25
100+$1.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Surface Mount Trimmer Potentiometers

Features:
- Top Adjust
- Single Turn
- Cermet
- Sealed

Electrical Specs:
Resistance: 10KΩ
Tolerance: �20%
End Resistance: 1% or 3 ohms max. (whichever is greater)
Contact Resistance Variation: 3% or 3 ohms
Adjustability:
- Voltage Driver: �0.1%
- Rheostat: �0.2%
Insulation Resistance: 500V (100MΩ min.)
Dielectric Strength:
- Sea Level: 500VAC
- 70,000 Feet: 350VAC
Adjustment Angle: 220� min.

Environmental Specs:
Power Rating:
- @ 70�C: 0.125W
- @ 125�C: 0W
Temperature Range: -55�C to 125�C
Temperature Coefficient: >100 ohms �100ppm/�C
Load Life 1000 Hours @ 70�C Rated Power; TRS �3%
Rotational Life: 100 Cycles TRS �3%
Thermal Shock: 5 Cycles TRS �2%, VRS �1%

Physical Specs:
Mechanical Angle: 250� nom.
Torque: 50g-cm max.
Dimensions: 3.5mm x 3.2mm x 2.2mm (.138" x .126" x .087")

Manufactured by: Bourns
Part Number: 3313J-1-103E

Full Datasheet: Bourns SMT Trimmer Pot 3313J-1-103E
