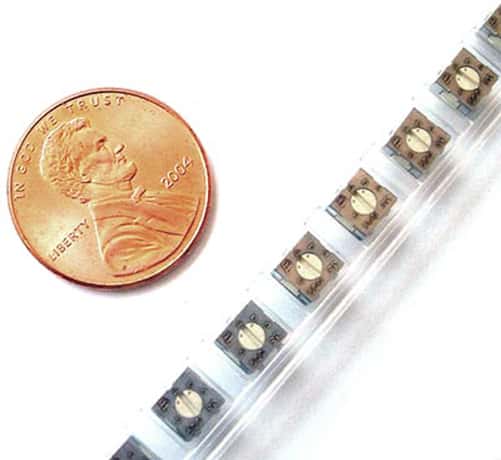

100K ohm SMT Trimmer Pot Bourns 3224J-1-104E

100K ohm SMT Trimmer Pot Bourns 3224J-1-104E

Manufacturer: Bourns
Part Number: 3224J-1-104E
Ohms: 100000
Tolerance (%): 10
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 3
Shape: Square

Price: $2.75
350 available for immediate delivery
Code: J296APF08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$2.75
10-99$2.50
100+$2.25
