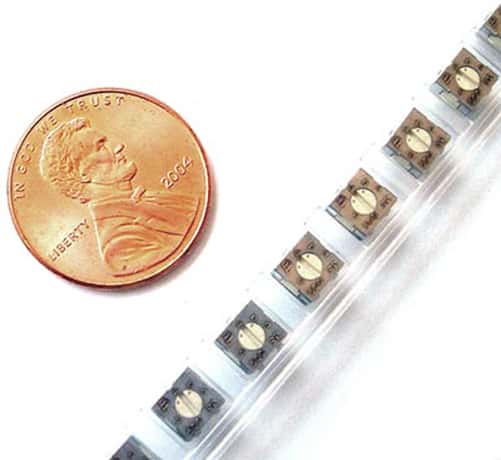

10K ohm SMT Trimmer Pot Bourns 3314G-001-103E

10K ohm SMT Trimmer Pot Bourns 3314G-001-103E

Manufacturer: Bourns
Part Number: 3314G-001-103E
Ohms: 10,000
Tolerance (%): 20
Mounting: Surface Mount
Lead/Terminal Type: Gullwing
Number Leads/Terminals: 3
Shape: Square
Termination Method: Solder
Size (mm): 4

Price: $1.25
295 available for immediate delivery
Code: J297APF08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.25
10-99$0.95
100+$0.85
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT Trimming Potentiometers

Features:
- Single Turn
- Cermet
- Sealed
- Industrial

Electrical Specs:
Resistance: 10KΩ
Tolerance: 20%
Contact Resistance Variation: 3% or 3 ohms
Insulation Resistance: 500V (100MΩ min.)
Dielectric Strength (Sea Level): 500VAC (1 Minute)
Adjustment Angle: 210� min.

Environmental Specs:
Power Rating: 0.25W @ 70�C ; 0W @ 125�C
Load Life (@ 70 �C Rated Power 1000 Hours): TRS �3%
Rotational Life: 100 Cycles TRS �3%
Thermal Shock: 5 Cycles TRS �2%, VRS �1%

Physical Specs:
Mechanical Angle: 240� nom.
Dimensions: 4.5mm x 4.5mm x 2.55mm (.177" x .177" x .100")

Manufactured by: Bourns
Part Number: 3314G-001-103E

Full Datasheet: Bourns 10K ohm Trimmer Pot 3314G-001-103E
