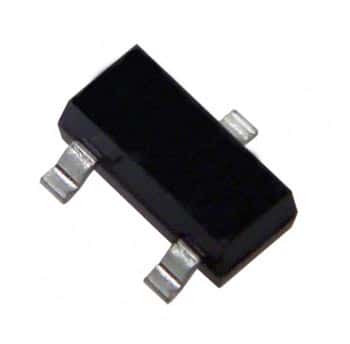

MMBT5551LT1 Surface Mount Transistor Motorola

MMBT5551LT1 Surface Mount Transistor Motorola

Manufacturer: Motorola
Part Number: MMBT5551LT1
Package: SOT23
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 3

Price: $0.25
2855 available for immediate delivery
Code: J308APF08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.25
10-99$0.22
100+$0.18
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

High Voltage SMT Transistors
NPN Silicon

Maximum Ratings
Collector-Emitter Voltage: 140V
Collector-Base Voltage: 160v
Emitter-Base Voltage: 6.0V
Collector Current-Continuous: 600mA

Thermal Characteristics
Total Device Dissipation FR-5 Board: 225mW
Derate above 25°C: 1.8mW/°C
Thermal Resistance, Junction to Ambient: 556°C/W
Total Device Dissipation Alumina Substrate: 300mW
Derate above 25°C: 2.4mW/°C
Thermal Resistance, Junction to Ambient: 417°C/W
Junction and Storage Temperature: -55° to 150°C

Electrical Characteristics (TA=25°C unless otherwise noted):

OFF
Collector-Emitter Breakdown Voltage (IC = 1.0mA, IB = 0): 160V min.
Collector-Base Breakdown Voltage (IC = 100uA, IE = 0): 180V min.
Emitter-Base Breakdown Voltage (IE = 10uA, IC = 0): 6.0V min.
Collector-Cutoff Current
- VCB = 120V, IE = 0): 50nA max.
- VCB = 120V, IE = 0, TA = 100°C: 50uA max.
Emitter Cutoff Current (VEB = 4V, IC = 0): 50nA max.

ON
DC Drain Current Gain
- IC = 1.0mA, VCE = 5.0V: 80 min.
- IC = 10mA, VCE = 5.0V: 80 min. ; 250 max.
- IC = 50mA, VCE = 5.0V: 30 min.
Collector-Emitter Saturation Voltage (IC = 50mA, IB = 5mA): 0.2V max.
Base-Emitter Saturation Voltage (IC = 50mA, VCE = 5.0V): 1.0V max.

Manufactured by: Motorola
Part Number: MMBT5551LT1

Full Datasheet: Motorola SMT Transistor MMBT5551LT1
