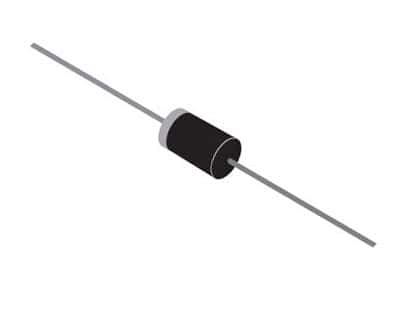

1N6290A Zener Diode General Semiconductor

1N6290A Zener Diode General Semiconductor

Manufacturer: General Semiconductor
Part Number: 1N6290A
Package: 1.5KE
Lead/Terminal Type: Axial
Number Leads/Terminals: 2

Price: $0.25
1350 available for immediate delivery
Code: J348APF08
Weight: 0.03oz ONZ
