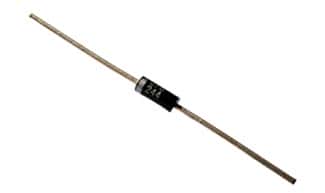

1.5KE15A 15V 1500W TVS Diode ST Microelectronics

1.5KE15A 15V 1500W TVS Diode ST Microelectronics

Manufacturer: STMicroelectronics
Part Number: 1.5KE15A
Voltage: 15
Watts: 1500
Package: DO-201
Lead/Terminal Type: Axial
Number Leads/Terminals: 2

Price: $0.30
1061 available for immediate delivery
Code: J436APF10
Volume Pricing
Quantity Price Each
1-9$0.30
10-99$0.26
100+$0.22

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Transient Voltage Suppression Transil™ Diodes
Unidirectional

Features
- Low Clamping Factor
- Fast Response Time

Maximum Ratings
Peak pulse power dissipation (Tj initial = TA): 1500W
Power dissipation on infinite heatsink (TA = 75°C): 5.0W
Non repetitive surge peak forward current for unidirectional types: 200A
Maximum junction temperature: 175°C

Thermal Resistance:
Junction to leads: 20°C/W
Junction to ambient on printed circuit (Llead = 10 mm): 75°C/W

Electrical Characteristics (TA=25°C unless otherwise noted):
Leakage Current @ Standoff Voltage: 1.0uA @ 12.8V
Breakdown Voltage @ 1mA:
- Minimum: 14.3V
- Nominal: 15.0V
- Maximum: 15.8V
Maximum Clamping Voltage @ Peak Pulse Current (10/1000us): 21.2V @ 71A
Maximum Clamping Voltage @ Peak Pulse Current (8/20us): 27.2V @ 368A
Maximum Voltage Temperature Coefficient: 8.4 10^-4/°C
Typical Capacitance: 5000pF

Manufactured by: STMicroelectronics
Part Number: 1.5KE15A

Full Datasheet: 15V Transient Voltage Suppressor Diode ST Micro
