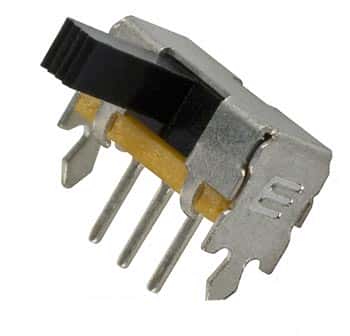

Slide Switch 0.2A 30V SPDT EG1213 E-Switch

Slide Switch 0.2A 30V SPDT EG1213 E-Switch

Manufacturer: E-Switch
Part Number: EG1213
Amps: .2
Voltage: 30
Voltage (Vac): 500
Ohms: .03
Number Leads/Terminals: 3
RoHS Compliant: Yes

Price: $0.50
318 available for immediate delivery
Code: J503APF12
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.45
100+$0.40
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SPDT Slides Switches

Rating: 0.2A @ 30VDC
Contact Resistance: 30mΩ max.
Insulation Resistance: 100MΩ min. @ 500VDC
Dielectric Strength: 500VAC for 1 minute
Operating Force: 150-400 grams
Operating Temperature: -10°C to 60°C
Mechanical Life: 10,000 Cycles

Dimensions:
Length: 10.0mm (0.40")
Width (excluding actuator): 3.8mm (0.15")
Height (excluding leads): 7.2mm (0.28")
Actuator Length: 5.0mm (0.20")

Manufactured by: E-Switch
Part Number: EG1213

Full Datasheet: SPDT Slide Switch EG1213

RoHS Compliant
