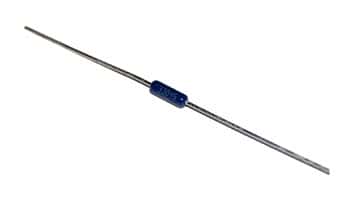

1/4W 3.3K ohm Metal Film Resistor Military Dale RLR07C3301GM
Manufacturer: Dale
Part Number: RLR07C3301GM
Voltage: 250
Voltage (Vac): 500
Watts: 1/4
Ohms: 3300
Tolerance (%): 2
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Metal Film
Color: Blue
Military Spec: Yes
Price: $0.25
72 available for immediate delivery
Code: J506APF12
Weight: 0.01oz
|
Additional Information
Metal Film ResistorsMilitary / Established Reliability
Type RLR
Features:
- Meets requirements of MIL-PRF-39017
- Excellent high frequency performance
- Epoxy coating provides superior moisture protection
- Very low noise
- Solderable / Weldable
Power Rating @ 70°C: 1/4W (0.25watt)
Resistance: 3.3K ohm
Tolerance: 2%
Temperature Coefficient: 100ppm/°C
Maximum Working Voltage: 250V
Failure Rate: 1.0% / 1000hr
Dielectric Strength: 500VAC
Operating Temperature Range: -60°C to 150°C
Typical Dimensions:
Length: 6.35mm (0.25")
Diameter: 2.29mm (0.090")
Lead Length: 27.43mm (1.08")
Lead Diameter: 0.64mm (0.025")
Manufactured by: Dale
Part Number: RLR07C3301GM
Full Datasheet: Military Resistor 1/4W 3.3K ohm Metal Film RLR07C3301GM
