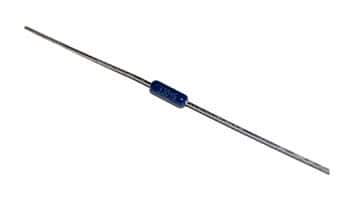

1/4W 6.8K ohm Metal Film Resistor Military Dale RLR07C6801GS

1/4W 6.8K ohm Metal Film Resistor Military Dale RLR07C6801GS

Manufacturer: Dale
Part Number: RLR07C6801GS
Voltage: 250
Voltage (Vac): 500
Watts: 1/4
Ohms: 6800
Tolerance (%): 2
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Metal Film
Color: Blue
Military Spec: Yes

Price: $0.25
248 available for immediate delivery
Code: J509APF12
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.25
10-99$0.20
100+$0.15

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Metal Film Resistors
Military / Established Reliability
Type RLR

Features:
- Meets requirements of MIL-PRF-39017
- Excellent high frequency performance
- Epoxy coating provides superior moisture protection
- Very low noise
- Solderable / Weldable

Power Rating @ 70°C: 1/4W (0.25watt)
Resistance: 9.1K ohm
Tolerance: 2%
Temperature Coefficient: 100ppm/°C
Maximum Working Voltage: 250V
Failure Rate: 0.001% / 1000hr
Dielectric Strength: 500VAC
Operating Temperature Range: -60°C to 150°C

Typical Dimensions:
Length: 6.35mm (0.25")
Diameter: 2.29mm (0.090")
Lead Length: 27.43mm (1.08")
Lead Diameter: 0.64mm (0.025")

Manufactured by: Dale
Part Number: Metal Film Resistors
Military / Established Reliability
Type RLR

Features:
- Meets requirements of MIL-PRF-39017
- Excellent high frequency performance
- Epoxy coating provides superior moisture protection
- Very low noise
- Solderable / Weldable

Power Rating @ 70°C: 1/4W (0.25watt)
Resistance: 9.1K ohm
Tolerance: 2%
Temperature Coefficient: 100ppm/°C
Maximum Working Voltage: 250V
Failure Rate: 0.001% / 1000hr
Dielectric Strength: 500VAC
Operating Temperature Range: -60°C to 150°C

Typical Dimensions:
Length: 6.35mm (0.25")
Diameter: 2.29mm (0.090")
Lead Length: 27.43mm (1.08")
Lead Diameter: 0.64mm (0.025")

Manufactured by: Dale
Part Number: RLR07C6801GS

Full Datasheet: Dale Military Resistors 1/4W 6.8KΩ RLR07C6801GS

Full Datasheet: RLR07C9101GS 1/4W 901KΩ Metal Film Resistors
