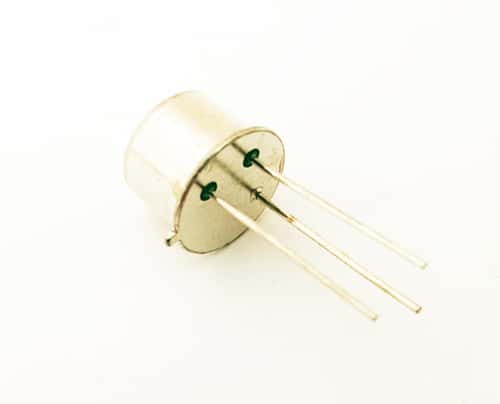

2N3019 1A 80V NPN Medium Power Transistor Philips

2N3019 1A 80V NPN Medium Power Transistor Philips

Manufacturer: Philips
Part Number: 2N3019
Amps: 1
Voltage: 80
Package: TO-39
Mounting: Through Hole
Number Leads/Terminals: 3
Material: Metal

Price: $0.75
6 available for immediate delivery
Code: J530APH07
Weight: 0.04oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.75
10-99$0.70
100+$0.65

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

NPN Medium Power Switching Transistors
Applications: Amplifier and switching circuits

Maximum Ratings
Collector-base voltage (open emitter): 140V
Collector-emitter voltage (open base): 80V
Emitter-base voltage (open collector): 7.0V
Collector current (DC): 1.0A
Peak collector current: 1.0A
Peak base current: 200mA
Total power dissipation (TA ≤ 25deg. C): 800mW

Electrical Characteristics (TA=25 deg. C unless otherwise noted):
Collector cut-off current (IE = 0; VCB = 90 V): 10nA max.
Emitter cut-off current (IC = 0; VEB = 5 V): 10nA max.
DC current gain (VCE = 10 V; IC = 0.1 mA): 50 min.
Collector-emitter saturation voltage (IC = 150 mA; IB = 15 mA): 200mV max.
Base-emitter saturation voltage (IC = 150 mA; IB = 15 mA): 1.1V max.
Collector capacitance (IE = ie = 0; VCB = 10 V; f = 1 MHz): 12pF max.
Emitter capacitance (IC = ic = 0; VEB = 500 mV; f = 1 MHz): 60pF max.
Transition frequency (IC = 50 mA; VCE = 10 V; f = 20 MHz): 100MHz min.

Manufactured by: Philips
Part Number: 2N3019

Full Datasheet: Philips 1A 80V NPN Transistor 2N3019
