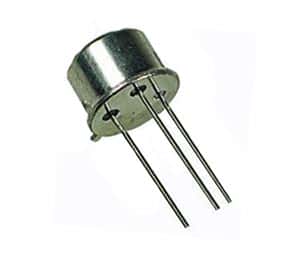

2N4031 1.0A 80V PNP Meduim Power Transistor Philips

2N4031 1.0A 80V PNP Meduim Power Transistor Philips

Manufacturer: Philips
Part Number: 2N4031
Amps: 1
Voltage: 80
Package: TO-39
Mounting: Through Hole
Number Leads/Terminals: 3
Material: Metal
Color: Silver
Termination Method: Solder

Price: $2.00
144 available for immediate delivery
Code: J531APH06
Weight: 0.04oz ONZ
Volume Pricing
