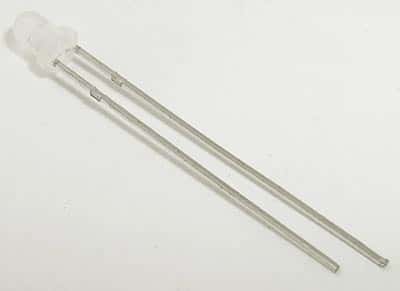

Red and Green 3mm Bicolor LED P-Tec Opto PL83-WD

Red and Green 3mm Bicolor LED P-Tec Opto PL83-WD

Manufacturer: P-tec Opto
Part Number: PL83-WD
Voltage: 5
Package: T1
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Red / Green
Termination Method: Solder
Size (mm): 3
Luminous Intensity (mcd): 12

Price: $0.20
961 available for immediate delivery
Code: J547APK03
Weight: 0.10oz ONZ
