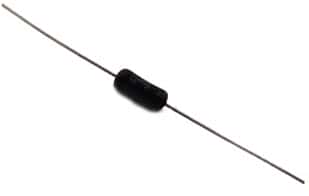

Power Wirewound Resistor 2.5W 1 ohm Dale CW2C-14-1R-5%

Power Wirewound Resistor 2.5W 1 ohm Dale CW2C-14-1R-5%

Manufacturer: Dale
Part Number: CW2C-14-1R-5%
Watts: 5
Ohms: 1
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Termination Method: Solder

Price: $0.50
290 available for immediate delivery
Code: J583APK04
Weight: 0.10oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Power Wire Wound Resistors
Axial Lead

Features:
High performance for low cost
High temperature silicone coating
Complete welded construction
Excellent stability in operation
High power to size ratio

Typical Electrical Characteristics
Power Rating @ 25°C
(Vishay Dale CW models have two power ratings, depending on operating temperature and stability requirements)
- Characteristic U + 250 °C: 2.5W
- Characteristic V + 350 °C: 3.25W
Resistance: 1.0 ohm
Tolerance: 5%

Technical Specs:
Temperature Coefficient: ±30ppm/°C
Dielectric Withstanding Voltage: 1000Vac
Short Time Overload: 5 times rated power for 5 s
Terminal Strength: 10lbs min.

Approx. Dimensions:
- Length: 12.7mm (.50")
- Diameter: 5.54mm (.22")
- Lead Length: 38.1mm (1.5")
- Lead Diameter: 0.813mm (0.032")

Materials:
Coating: Special high temperature silicone
Standard Terminals: Tinned Copperweld®
End Caps: Stainless steel

Manufactured by: Dale (Vishay)
Part Number: CW2C-14-1R-5%

Full Datasheet: Dale 2 1/2 Watt 1.0 ohm 5% Wire Wound Resistor
