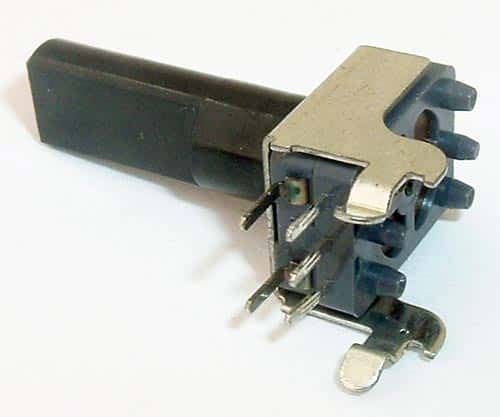

10K ohm 9mm Dual Rotary Potentiometer Alps RK09K12A0A5F

10K ohm 9mm Dual Rotary Potentiometer Alps RK09K12A0A5F

Manufacturer: Alps
Part Number: RK09K12A0A5F
Ohms: 10000
Mounting: Horizontal
Lead/Terminal Type: Pin
Number Leads/Terminals: 5
Color: Silver
Temperature: 70
Termination Method: Solder
Size (mm): 9.8

Price: $1.00
887 available for immediate delivery
Code: J626APK08
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Dual Snap In Potentiometers

Features:
- Horizontal Mount
- Compact size
- Insulated Flat Shaft

Resistance: 10K ohm
Tolerance: 30%
Maximum Voltage: 50 VAC
Insulation Resistance: 100 megohm @ 250 VDC
Total Rotation Angle: 280° (+/- 5°)
Rotational Torque: 1 to 8mN・m
Operational Life: 10,000 cycles
Operating Temperature: -10°C to 70°C

Dimensions (as measured):
Mounting Height: 6.5mm (0.25")
Overall Width: 9.8mm (0.39")
Overall Height: 15.4mm (0.61")
Overall Length: 27.4mm (1.08")
Overall Shaft Length (Insulated part): 18mm (0.70")

Manufactured by: Alps
Part Number: RK09K12A0A5F

For reference only, we are providing a datasheet for the RK09K Series. Please note that this exact part number is not referenced in this information. West Florida Components assumes no liability for this information.

Full Datasheet: Alps 10K ohm Insulated Shaft Dual Potentiometer
