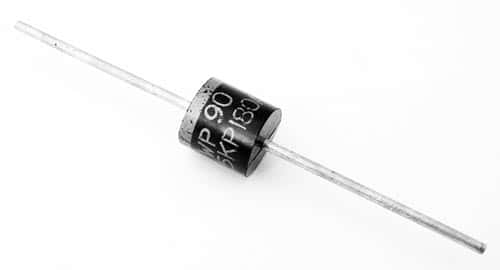

5KP180A 180V 5000W TVS Diode Axial Lead World Products

5KP180A 180V 5000W TVS Diode Axial Lead World Products

Manufacturer: World Products
Part Number: 5KP180A
Amps: 17.6
Voltage: 180
Watts: 5000
Tolerance (%): 5
Package: P600
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $2.00
408 available for immediate delivery
Code: J657APK10
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Transient Voltage Suppression Diodes
KP Series

Features:
- Uni-directional
- Glass passivated junction

Peak Pulse Power: 5,000W
Voltage Tolerance: 5%
Reverse Stand-off Voltage: 180V
Breakdown Voltage (@ 5.0mA): 200V min. / 221V max.
Maximum Clamping Voltage (@ 17.6A):292V
Maximum Peak Pulse Current: 17.6A
Maximum Reverse Leakage (@ 180V): 10uA

Dimensions:
Length: 9.1mm (0.36")
Diameter: 9.1mm (0.36")
Lead Length: 25.4mm (1.0")

Manufactured by: World Products
Part Number: 5KP180A

For reference only, we are providing a datasheet for this part number. Please note it is from a different manufacturer. West Florida Components assumes no liability for this information.

Full Datasheet: 5KP Series Silicon Avalanche Diodes 5K Watt 180V
