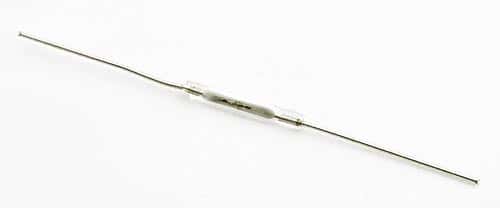

GR560 Miniature Reed Switch SPST Axial Lead Standex

GR560 Miniature Reed Switch SPST Axial Lead Standex

Manufacturer: Standex
Part Number: GR560
Amps: 1
Voltage: 100
Voltage (Vac): 125
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Glass
Termination Method: Solder

Price: $0.75
130 available for immediate delivery
Code: J668APK11
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Miniature Reed Switches
Form A (SPST)
Contact Material: Rhodium

Features:
- Superior life switching relatively heavy loads
- Miniature glass package
- Maintains low contact resistance over life switching light duty logic level loads

Electrical Specifications:
Power Rating: 10 VA max.
Switching Current: 1.0A DC ; 1.0A AC
Carry Current: 1.5A DC ; 1.5A AC
Switching Voltage: 100VDC ; 125 VAC
Breakdown Voltage (min @ 20AT): 200VDC
Contact Resistance: 100 milliohms
Contact Capacitance: 0.2pF

Maximum Dimensions:
Glass Diameter: 2.3mm (0.09")
Glass Length: 14.2mm (0.56")
Lead Length: 54.0mm (2.13")
Lead Diameter: 0.6mm (0.23")

Applications:
- Liquid level sensors
- Security systems
- Reed relays
- Proximity sensors
- Counting devices

Manufactured by: Standex
Part Number: GR560

Full Datasheet: Axial Lead Reed Switch
