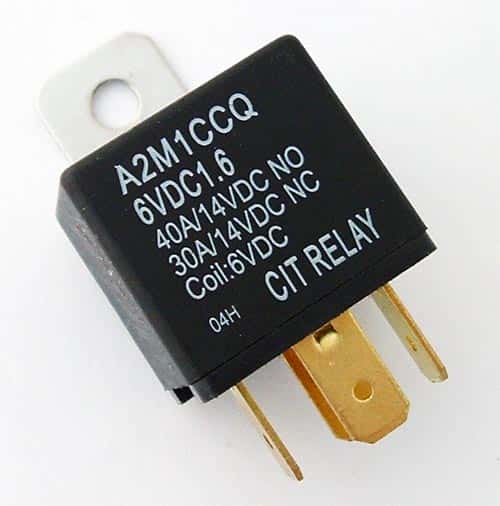

40A 6V 1.6W SPDT Standard Relay CIT® A2M1CCQ6VDC1.6

40A 6V 1.6W SPDT Standard Relay CIT® A2M1CCQ6VDC1.6

Manufacturer: CIT®
Part Number: A2M1CCQ6VDC1.6
Amps: 40
Voltage: 6
Watts: 1.6
Ohms: 22.5
Mounting: Metal bracket
Lead/Terminal Type: Quick Connect
Number Leads/Terminals: 5
Color: Black
Temperature: -40 to 125°C
Size (mm): 26 x 30.5 x 24.5

Price: $2.75
2244 available for immediate delivery
Code: J669AHK10
Weight: 1.00oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Quick Connect Standard Relays

Features:
- Large switching capacity up to 40A
- Small size and lightweight
- Quick connect mounting
- Suitable for automobile and lamp accessories

Contact Data
Arrangement: SPDT
Rating:
- Normally Open: 40A @ 14VDC
- Normally Closed: 30A @ 14VDC
Resistance: < 30 milliohms initial

Switching Data
Maximum switching power: 630W
Maximum switching voltage: 75VDC
Maximum switching current: 40A

Coil Data
Voltage
- Rated: 6.0VV
- Max: 7.8V
Resistance: 22.5 Ohms
Power: 1.6W

Dimensions:
Length: 26.0mm (1.02")
Width: 30.5mm (1.20")
Height: 24.5mm (0.96")

Manufactured by: CIT®
Part number: A2M1CCQ6VDC1.6

Full Datasheet: CIT Automotive Relays 40.0A 6.0VA2 Series
