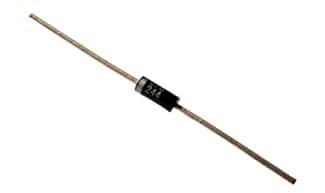

P6KE33ARLG 33V 600W TVS Voltage Suppressor Diode ON Semiconductor

P6KE33ARLG 33V 600W TVS Voltage Suppressor Diode ON Semiconductor

Manufacturer: ON Semiconductor
Part Number: P6KE33ARLG
Amps: 13.2
Voltage: 33
Watts: 600
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Thermoplastic
Color: Black
Temperature: 150
RoHS Compliant: Yes
Shape: Round
Termination Method: Solder

Price: $0.40
4000 available for immediate delivery
Code: J686APL02
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.40
10-99$0.30
100+$0.17

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Transient Voltage Suppressor Diode
Unidirectional

Features:
- ESD Rating of Class 3 (>16 KV) per Human Body Model
- Maximum Clamp Voltage @ Peak Pulse Current
- Low Leakage < 5A above 10 V
- Maximum Temperature Coefficient Specified
- UL 497B for Isolated Loop Circuit Protection

Electrical Characteristics
Reverse Standoff Voltage: 28.2V (typ)
Breakdown Voltage: 31.4V (min)
Clamping Voltage @ IPP: 45.7V (max)
Peak Pulse Current (10/1000us): 13.2A (8/20us)
Peak Pulse Power: 600W
Operating Temperature: -55°C to 150°C

Dimensions:
Length: 8.38mm (0.33")
Diameter: 3.3mm (0.13")
Lead Length: 25.4mm (1.0")

Applications
- Communication Systems
- Numerical Controls
- Process Controls
- Business Machines
- Power Supplies

Manufactured by: ON Semiconductor
Part Number: P6KE33ARLG

Full Datasheet: Transient Voltage Suppression Diodes P6KE33ARLG

RoHS Compliant
