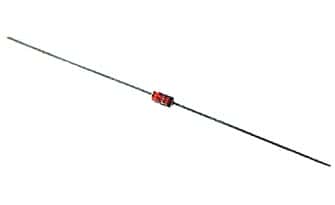

1N4740A 1.3W 25mA 10V Zener Diode Vishay

1N4740A 1.3W 25mA 10V Zener Diode Vishay

Manufacturer: Vishay
Part Number: 1N4740
Amps: .025
Voltage: 10
Watts: 1.3
Tolerance (%): 5
Package: DO-41
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Orange
Termination Method: Solder

Price: $0.25
2212 available for immediate delivery
Code: J687APL02
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.25
10-99$0.20
100-499$0.15
500+$0.10
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Axial Lead Zener Diodes

Features:
- Silicon planar power
- For use in stabilizing and clipping circuits with high power rating

Maximum Power Rating: 1.3W
Tolerance: 5%
Nominal Zener Voltage: 10.0V
Reverse Leakage Current @ Vr: 10uA @ 7.6V
Zener Impedance @ Izt: 7.0Ω @ 25mA
Zener Knee Impedance @ Izk: 700Ω @ 0.25mA
Reverse Current: 10.0uA

Length: 3.93mm (0.15")
Diameter: 2.47mm(0.10")
Lead Length: 28.5mm (1.13")

Manufactured by: Vishay
Part Number: 1N4740A

Full Datasheet: Axial Lead Zener Diode 25mA 10V 1.3W
