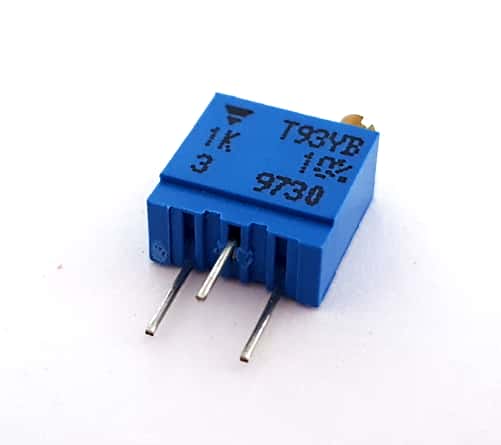

1K Ohm .50W Trim Pot Variable Resistor Vishay® T93YB102KT20

1K Ohm .50W Trim Pot Variable Resistor Vishay® T93YB102KT20

Price: $0.60
9500 available for immediate delivery
Code: J692APU04
Weight: 0.03oz ONZ
Volume Pricing
Quantity Price Each
1-99$0.60
100+$0.50

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Top Adjust Trimming Potentiometers
3/8" Square

Features:
- Cermet
- Multiturn
- Fully Sealed
- Industrial Grade
- Contact resistance variation < 2 %

Resistance: 1,000 Ohms
Power Rating: 1/2 Watt
Tolerance: 10%
Dielectric Strength (Sea Level): 1000Vac
Max. Working Voltage: 22.3V
Max. Current Through Wiper: 22.0mA
Temperature Coefficient: +/-100 ppm/°C
Turns:
- Electrical: 21 Turns +/-2
- Mechanical: 23 Tuns +/- 5
Temperature Range: -55 to 125°C

Dimensions:
Length: 9.7mm (0.382")
Width: 5.0mm (0.197")
Height: 9.8mm (0.386")

Manufactured by: Vishay®
Part Number: T93YB102KT20

Full Datasheet: Vishay® T93 Series Trimmer Pot 1000 Ohm 1/2W

RoHS Compliant
