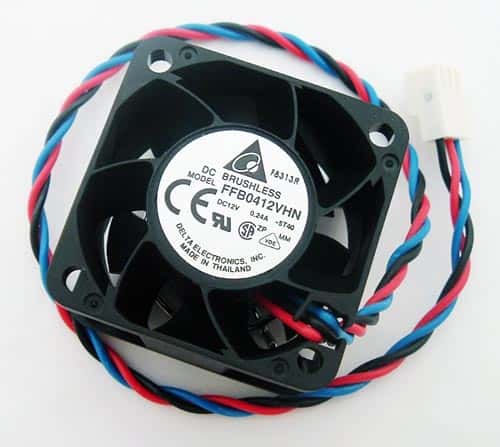

12V 0.16 A Brushless Axial Flow Fan Delta® FFB0412VHN

12V 0.16 A Brushless Axial Flow Fan Delta® FFB0412VHN

Manufacturer: Delta®
Part Number: FFB0412VHN
Amps: .16
Voltage: 12
Watts: 1.92
Mounting: Screw
Lead/Terminal Type: Wire
Number Leads/Terminals: 3
Material: Plastic
Color: Black
Temperature: 70
Shape: Square
Termination Method: Plug
Size (mm): 40

Price: $6.50
169 available for immediate delivery
Code: K013APL06
Weight: 1.30oz ONZ
Volume Pricing
Quantity Price Each
1-99$6.50
100+$6.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DC Brushless Cooling Fans
With Grill on 1 Side

UL Class A
5 Blades
Clockwise Rotation
Ball Bearings
3 Leads Wires

Rated Voltage: 12V
Operating Voltage: 4.5 - 13.2VDC
Input Current: 0.16A
Max. Input Current: 0.24A
Input Power: 1.92W
Max. Input Power: 2.88W
Speed: 9500 RPM
Air Pressure: 0.509 inch H20
Max. Air Flow (@ zero static pressure): 15.79 CFM
Noise: 45 dB(A)
Operating Temperature: -10°C to 70°C

Dimensions:
Length: 40mm (1.575")
Width: 40mm (1.575")
Thickness: 28mm (1.102")
Distance Between Mounting Holes: 32mm (1.26")
Wire Size: 24 AWG
Wire Length: 279mm (11")

Manufactured by: Delta®
Part Number: FFB0412VHN

Full Datasheet: Delta® 40mm Brushless Cooling Fan 12V FFB Series
