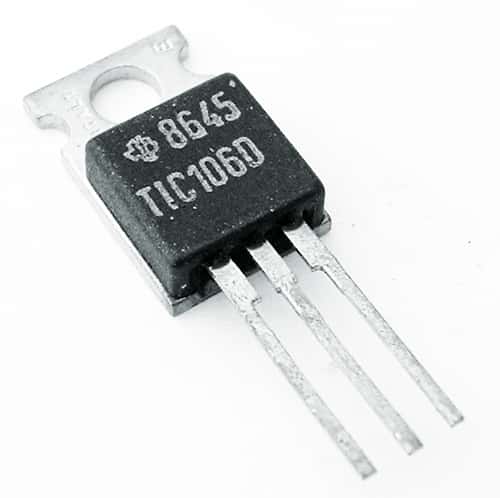

TIC106D 5A 400V SCR Thyristor Texas Instruments®

TIC106D 5A 400V SCR Thyristor Texas Instruments®

Manufacturer: Texas Instruments®
Part Number: TIC106D
Amps: 5
Voltage: 400
Watts: 10.3
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 3
Color: Black
Temperature: -40 to 110°C
Termination Method: Solder
Size (mm): 10.4 x 4.5 x 15.2

Price: $1.25
1615 available for immediate delivery
Code: K018APL11
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Silicon Controlled Rectifiers
Reverse-Blocking Triode Thyristors

Maximum Ratings
Repetitive Peak Off-State Voltage: 400V
Repetitive Peak Reverse Voltage: 400V
Continuous On-State Current: 5.0A
Average On-State Current: 3.2A
Surge On-State Current: 30A
Peak Positive Gate Current: 0.2A
Peak Gate Power Dissipation: 1.3W
Average Gate Power Dissipation: 0.3W
Operating Temperature: -40 to 110 deg. C

Electrical Specs @ 25 deg. C Case Temperature
Repetitive Peak Off-State Current: 400uA
Repetitive Peak Reverse Current: 1.0mA
Peak On-State Voltage: 1.7V

Manufactured by: Texas Instruments®
Part Number: TIC106D
