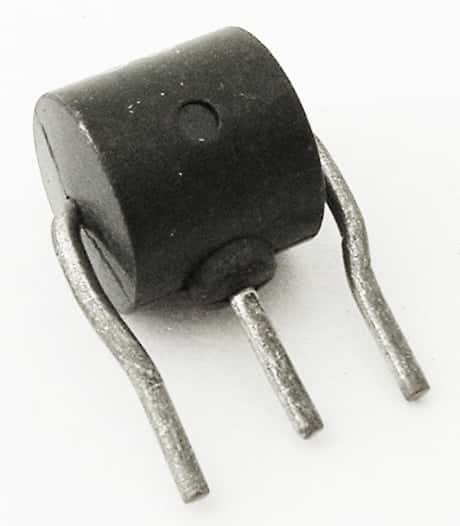

T10C220B 250A 220V Sidactor Thyristor Crydom

T10C220B 250A 220V Sidactor Thyristor Crydom

Manufacturer: Crydom
Part Number: T10C220B
Amps: 250
Voltage: 220
Watts: 5
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 3
Color: Black
Temperature: 150
Termination Method: Solder

Price: $0.60
2000 available for immediate delivery
Code: K026APM06
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-99$0.60
100+$0.55
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Sidactor Thyristors
3 Terminal
Radial Leads

Features:
- Glass passivated junction
- High current diverting capability, 250A
- Low capacitance, less than 200pF
- UL Recognized
- Automatic Reset
- Does Not Degrade

Maximum Ratings
Power Dissipation on Infinite Heatsink: 5W
Peak Pulse Current:
- 10 x 1000usec: 100A
- 10/700 1.5KV: 125A
- 8-20us expo: 250A
Non Repetitive Surge Peak On-State Current: 50A
Operating Junction Temperature: 150 deg. C
Thermal Resistance
- Junction-leads on Infinite Heatsink: 60 deg. C/W

Stand-off Voltage: 200V
IRM @ VRM: 1.0uA
Breakdown Voltage MIN @ 1.0mA: 220V
VBO MAX: 265V
VT TYP @ 1.0A: 4.0V
IBO TYP: 50mA
Holding Current MIN: 120mA

Application: Bi-directional device for telephone and line card protection

Manufactured by: Crydom (Semitron)
Part Number: T10C220B

Full Datasheet: 3 Lead Sibod Thyristor 220V 250A
