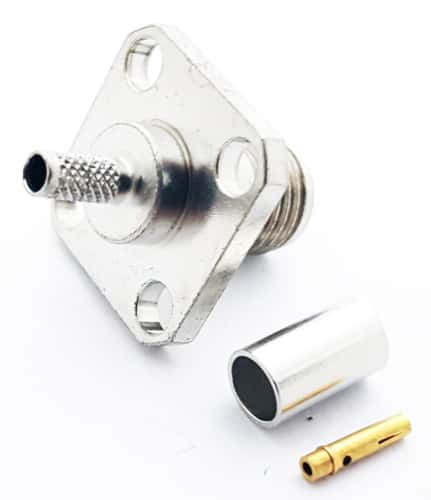

25_SMA50-2-46C/133 50 Ohm Panel Mount Receptacle Connector Suhner

25_SMA50-2-46C/133 50 Ohm Panel Mount Receptacle Connector Suhner

Manufacturer: Suhner
Part Number: 25_SMA50-2-46C/133
Ohms: 50
Mounting: Panel Mount
Lead/Terminal Type: Cable
Color: Silver
Temperature: 165

Price: $8.00
23 available for immediate delivery
Code: K036APN04
Weight: 0.02oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Panel Mount Coaxial Cable Jack
For Flexible Cables

Features:
- Frequency range up to 18 GHz
- Excellent return loss
- Intermateable with PC3.5 and SK

Cable Entry Center Contact: Soldered
Cable Entry Outer Contact: Crimped
Dielectric Size: 2
Matings: 500
Cable Retention Force: 125 N

Impedance: 50 ohm
Frequency: 18 GHz
Temperature: -65 deg. C to 165 deg. C

Manufactured by: Suhner
Part Number: 25_SMA50-2-46C/133

Full Datasheet: Straight Panel Cable Jack 25SMA50-2-46C/133
Dimensions: 25_SMA50-2-46C/133
