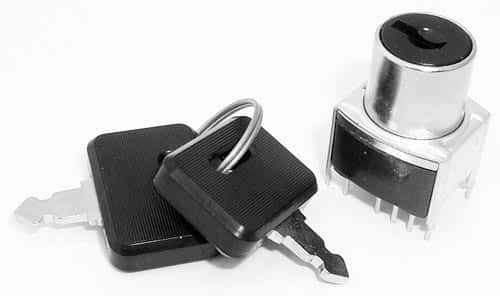

Key Lock Switch SP3T 0.4VA 28V NKK SK14EG13-RO

Key Lock Switch SP3T 0.4VA 28V NKK SK14EG13-RO

Manufacturer: NKK Switches
Part Number: SK14EG13-RO
Amps: .4
Voltage: 28
Mounting: Through Hole
Lead/Terminal Type: PCB
Number Leads/Terminals: 4
Color: Black
Temperature: 70
RoHS Compliant: Yes
Termination Method: Solder

Price: $15.00
100 available for immediate delivery
Code: K059APL09
Weight: 0.50oz ONZ
Volume Pricing
Quantity Price Each
1-9$15.00
10-99$12.00
100+$11.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Keylock Switches
Includes 2 Keys
Key Removes in Position 2
Can be used as ON-OFF-ON circuit

Features:
- Sealed Body
- Space saving short body
- Detent mechanism, gives crisp, positive action for accurate switch setting
- Bifurcated self-wiping contact mechanism
- Crimped bracket legs for secure PCB mounting

Electrical Capacity (Resistive Load): 0.4VA @ 28V AC/DC
Contact Resistance: 80 milliohms (max)
Insulation Resistance: 100 megohms min. @ 500 VDC
Dielectric Strength: 500 VAC min. for 1 minute min.
Electrical Life: 10,000 cycles min.
Contact Timing: Break-before-Make
Operating Temperature: -25°C to 75°C

Dimensions:
Length: 15.74mm (0.62")
Width: 14.5mm (0.57")
Overall Height (including leads): 24.4mm (1.0")

Manufactured by: NKK Switches
Part Number: SK14EG13-RO

Full Datasheet: NKK Sealed Key Lock Switches SK Series

RoHS Compliant
