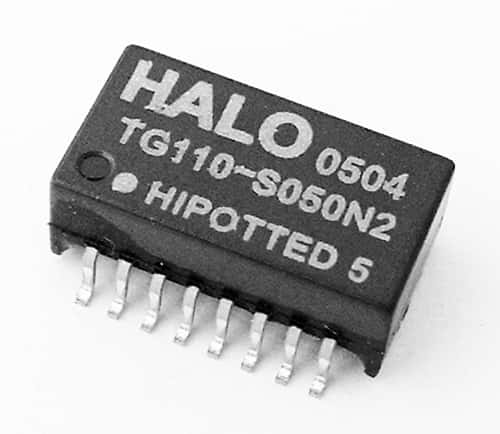

TG110-S050N2 SMT Hi-potted Telecom Transformer

TG110-S050N2 SMT Hi-potted Telecom Transformer

Manufacturer: Halo Electronics
Part Number: TG110-S050N2
Voltage: 1500
Ohms: 1.5
Inductance (uH): .4
Package: SOIC
Mounting: Surface Mount
Lead/Terminal Type: Gull Wing
Number Leads/Terminals: 16
Color: Black
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder

Price: $2.35
610 available for immediate delivery
Code: K135APM07
Weight: 0.10oz ONZ
