MAX430CPA Chopper Stabilized Op Amp Maxim

MAX430CPA Chopper Stabilized Op Amp Maxim

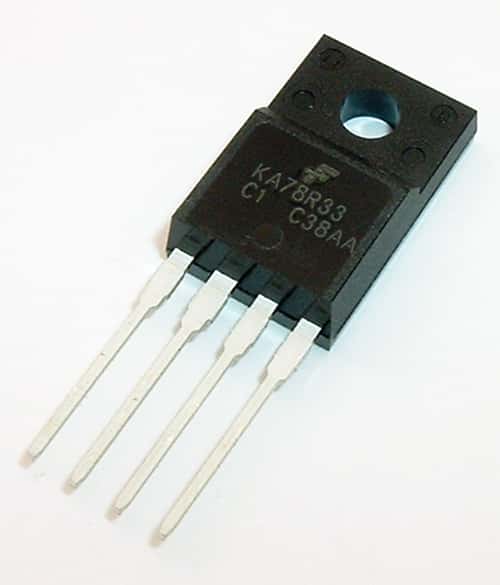

Manufacturer: Fairchild®
Part Number: KA78R33CTU
Amps: 1
Voltage: 3.3
Watts: 1.5
Package: TO-220FP4
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 4
Color: Black
Temperature: 80
RoHS Compliant: Yes
Termination Method: Solder

Price: $1.00
804 available for immediate delivery
Code: K317APN01
Weight: 0.10oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Fixed Output LDO Voltage Regulators

Features:
Overcurrent protection, thermal shutdown
Overvoltage protection, short circuit protection
With output disable function

Maximum Ratings
Input Voltage: 35.0V
Disable Voltage: 35.0V
Output Current: 1.0A
Power Dissipation (NO heatsink): 1.5W
Operating Temperature: -20 ~80 deg. C

Typical Electrical Characteristics TA=25 deg. C
Output Voltage: 3.3V
Load Regulation: 0.1 %
Ripple Rejection Ration: 55dB
Dropout Voltage: 0.5V max.
Disable Voltage High: 2.0V min.
Disable Voltage Low: 0.8V max.

Manufactured by: Fairchild®
Part Number: KA78R33CTU

Full Datasheet: LDO Voltage Regulator 3.3V KA78R Series

RoHS Compliant
