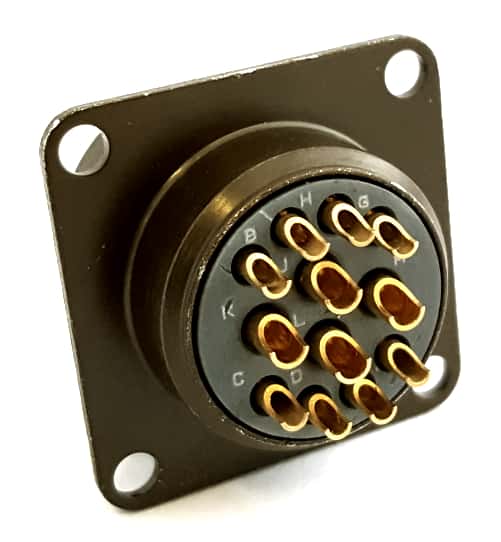

851-02E14-12P50 12 Position Circular Square Flange Receptacle Connector MIL Souriau®

851-02E14-12P50 12 Position Circular Square Flange Receptacle Connector MIL Souriau®

Manufacturer: Souriau®
Part Number: 851-02E14-12P50
Amps: 7.5, 13
Mounting: Panel Mount
Number Leads/Terminals: 12
Material: Aluminum Alloy
Color: Olive Drab Green
Temperature: 125
Shape: Circular
Termination Method: Solder Cup

Price: $20.00
19 available for immediate delivery
Code: K410APR11
Weight: 0.70oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

MILITARY Circular Receptacle Connectors
Square Flange, Not Accepting Backshell

Connector Type: Receptacle
Orientation: Straight
Contact Gender: Male
Number of Positions: 14
Shell Size: 14
Insert: 12
Fastening Type: Bayonet Lock
Current Rating (per contact):
- Size 20: 7.5A
- Size 16: 13.0A
Temperature: -55 to 125°C

Manufactured by: Souriau®
Part Number: 851-02E14-12P50

Full Datasheet: Souriau® 851 Series 12 Terminal 1 Port MIL Connector
