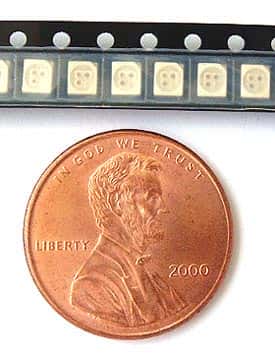

Multi-Color LEDS Green Red and Blue! SMT Tricolor ZHGBT678-E7510

Multi-Color LEDS Green Red and Blue! SMT Tricolor ZHGBT678-E7510

Manufacturer: Osram Opto Semiconductors
Part Number: ZHGBT678-E7510
Lead/Terminal Type: Surface Mount
Color: Red Green Blue

Price: $0.83
4695 available for immediate delivery
Code: LED012
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$15.00
$4.85
$15.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$15.00
$9.50
$15.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$14.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$19.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Multi Color LEDS
Light up RED GREEN and BLUE
Surface Mount PLCC4 package

Applications:
-Indoor displays (e.g. light writing displays)
-LED chips can be controlled separately
-Full color displays RGB-Displays
-Backlighting (LCD switches keys displays illuminated advertising general lighting)
-Coupling into light guides
-Not suitable for automotive applications

Features:
-Package: white PLCC4; Multi TOP-LED
-Additive mixture of color stimuli by independent driving of each chip
-Wavelength: 645 nm (hyper red) 570 nm (green) 465 nm (blue)
-Technology: AiGaAs (hyper red) GaP (green) GaN (blue)
-Optical Efficiency: 3 lm/W (hyper red) 2.5lm/W (green) 1 lm/W (blue)
-Grouping Parameter: Luminous Intensity
-Assembly Methods: Suitable for all SMT assembly methods
-Soldering Methods: IR reflow soldering and TTW soldering
-Leads: Folded
-Lens: Colored Difussed

Specs:
-Operating Temp: -40 ...+100C
-Junction Temp: 100C
-Forward Current: 30 mA (hyper red) 30 mA (green) 20 mA (blue)
-Surge Current: .5A (hyper red) .5A (green) .2A (blue)
-Reverse Voltage: 5V (hyper red) 12V (green) 5V (blue)
-Forward Voltage: 2.5V (hyper red) 2.5V (green) 4.1V (blue)
-Viewing Angle: 120 Grad (at 50% Iv)

Manufactured by: OSRAM
Part Number: ZHGBT678-E7510
