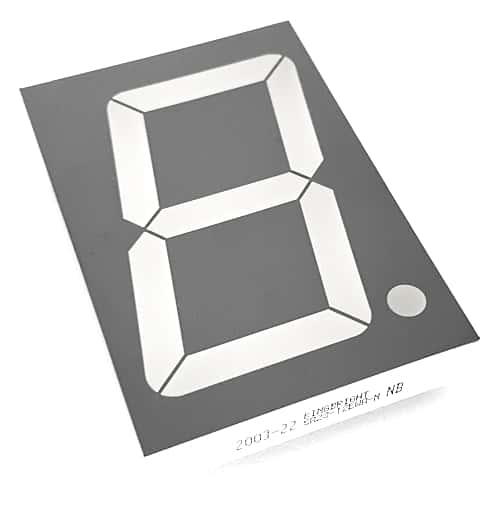

7 Segment 1 Digit LED Numeric Display Red Kingbright SA23-12EWA

7 Segment 1 Digit LED Numeric Display Red Kingbright SA23-12EWA

Manufacturer: Kingbright
Part Number: SA23-12EWA
Capacitance (uF): .000015
Amps: .2
Voltage: 8
Watts: .3
Package: 10 Pin Dip
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 10
Material: GaAsP/GaP
Color: Red
Temperature: 85
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder
Luminous Intensity (mcd): 57

Price: $5.25
20 available for immediate delivery
Code: LED020BPQ07
Weight: 2.00oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Seven Segment LED Displays
High Efficiency Red (GaAsP/GaP)
Common Anode
Right Hand Decimal
Single Character (Digit Height = 56.9mm (2.24")
Grey Face / White Segment

Features:
- Low Current Operation
- High Light Output
- Easy Mounting on PC Boards or Sockets
- I.C. Compatible

Power Dissipation: 300mW
Forward Voltage: 8.2V (typ)
Test Current: 20mA
Reverse Current: 10uA (max)
Capacitance: 15pF (typ)
Millicandela Rating: 57mcd (typ)
Peak Wavelength: 627nm (typ)
Dominant Wavelength: 617nm (typ)
Spectral Line Half-width: 45nm (typ)
Operating Temperature: -40 to 85 Deg. C.

Dimensions
Height: 70.0mm (2.756")
Width: 48.0mm (1.89")
Thickness: 12.0mm (0.472")

Manufactured by: Kingbright
Part Number: SA23-12EWA

Full Datasheet: Kingsbright 2.3" Single Digit Red LED Display 8V 20mA

RoHS Compliant
