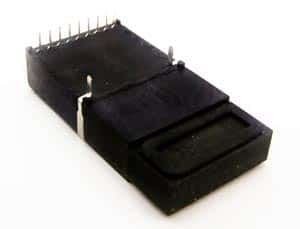

269040-1 Fiber Optic SC Duplex Transceiver 125 Mbs

269040-1 Fiber Optic SC Duplex Transceiver 125 Mbs

Manufacturer: Amp
Part Number: 269040-1

Price: $60.00
4 available for immediate delivery
Code: LED084PD

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Fiber Optic SC Duplex Transceivers
9 Pin
Transceiver style: SC Duplex
Transceiver type: Molded-Optronic
Data rate: 125 Mb/s

Transmitter Specs:
Optical output: -19dBm min;-14dBm max
Extinction ratio: 10%
Optical wavelength:1270nm min;1330nm typ;1380nm max
Spectral width: 130nm typ
Duty cycle: 100% max
Output risetime: 0.6ns min;1.5ns typ;3.5ns max
Output failtime: 0.6ns min;1.5ns typ;3.5ns max
Pulse with distortion: 0.6ns max
Data dependant jitter: 0.6ns max
Random jitter: 0.6ns max

Receiver specs:
Optical input sensitivity: -33.5dBm min;-14.0dBm max
Optical wavelength: 1270nm min;1380nm max
Duty cycle: 25% min;50% typ;75% max
Output risetime: .6ns min;2.5ns max
Output failtime: .6ns min;2.5ns max
Pulse with distortion: 0.4ns max
Data dependant jitter: 0.8ns max

Application: FDDI

Manufactured by: AMP
Part number: 269040-1

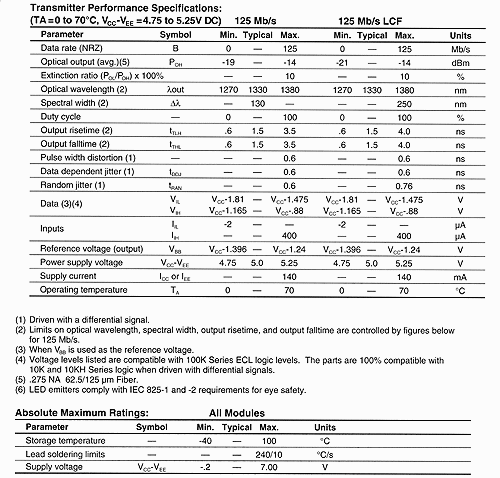

Transmitter Specifications : 269040-1

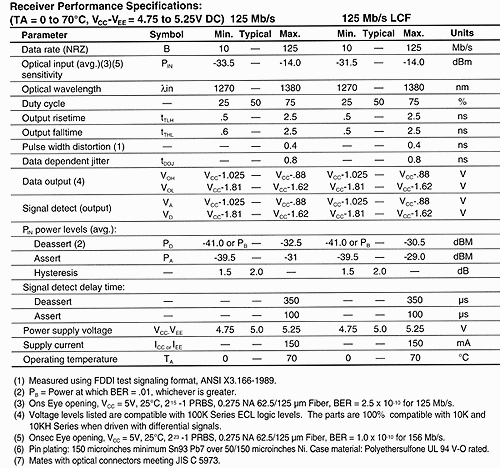

Receiver Specifications: 269040-1
