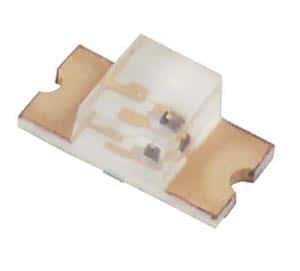

Green Surface Mount Chip LED Light LTST-C230KGKTP Lite On

Green Surface Mount Chip LED Light LTST-C230KGKTP Lite On

Manufacturer: Lite-On
Part Number: LTST-C230KGKTP
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 2
Material: AlGaInP
Color: Green

Price: $0.10
2965 available for immediate delivery
Code: LED201APF12
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.08
100-499$0.06
500+$0.04
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT Chip LED Lights

Features:
- Reverse Mount Chip LED
- Ultra Bright
- Compatible with Automatic Placement Equipment
- Compatible with Infrared and Vapor Phase Reflow Solder Process

Emitted Color: Green
Lens type: Water Clear
Luminous Intensity (IF = 20mA): 20mcd min. ; 35mcd typ.
Viewing Angle: 130° typ.
Peak Emission Wavelength: 574nm typ.
Dominant Wavelength: 571nmtyp.
Spectral Line Half-Width: 15nm typ.
Forward Voltage (IF = 20mA): 2.0V typ. ; 2.4V max.
Reverse Current (VR = 5V): 100uA max.
Capacitance (VF = 0, f = 1MHZ): 40pF typ.

Maximum Ratings
Power Dissipation: 75mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width): 80mA
Continuous Forward Current: 30mA
Derating Linear from 25°C: 0.4mA/°C
Reverse Voltage: 5V
Operating and Storage Temperature Range: -55°C to 85°C
Wave and Infrared Soldering Conditions: 260°C for 5 sec.
Vapor Phase Soldering Condition: 215°C for 3 min.

Manufactured by: Lite-On
Part Number: LTST-C230KGKTP

Full Datasheet: SMT Green LED Light LTST-C230KGKTP
