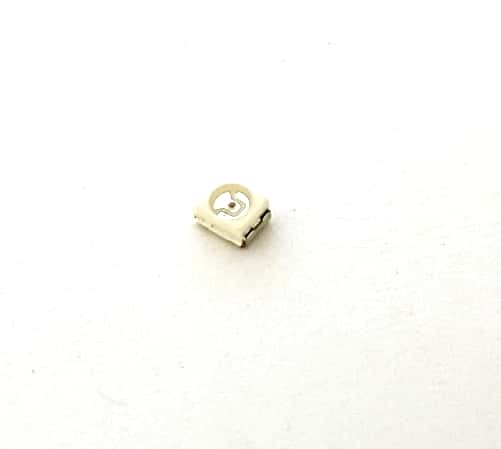

Yellow Surface Mount LED Indicator Light Hewlett Packard HSMY-T600

Yellow Surface Mount LED Indicator Light Hewlett Packard HSMY-T600

Manufacturer: Hewlett Packard
Part Number: HSMY-T600
Capacitance (uF): .000015
Amps: .02
Voltage: 2
Package: PLCC
Mounting: Surface Mount
Number Leads/Terminals: 2
Color: Yellow
Temperature: 85
Obsolete: Yes
Shape: Square
Termination Method: Solder
Luminous Intensity (mcd): 5

Price: $0.20
1999 available for immediate delivery
Code: LED215APQ07
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT LED Indicator Lamps
Obsolete
Color: Yellow
Transparency: Non-Diffused

Features
- Compatible with Infrared and Vapor Phase Reflow Solder Processes
- EIA Standard Package
- Low Package Profile
- Excellent for Backlighting and Coupling to Light Pipes

Maximum Ratings
DC Forward Current: 30mA
Peak Forward Current: 60mA
Average Forward Current: 20mA
Transient Forward Currrent: 500mA
Reverse Voltage: 5.0V
Operating Temperature: -40 to 85 Deg. C.

Typical Electrical/Optical Ratings
Luminous Intensity: 5.0mcd
Forward Voltage: 2.0V
Included Angle Between Half Intensity Points: 120 degrees
Peak Wavelength: 583nm
Dominant Wavelength: 585nm
Spectral Line Half-Width: 36nm
Response Speed: 90ns
Capacitance: 15pF

Dimensions: 3.5mm (L) x 2.5mm (W) x 1.9(H)

Manufactured by: Hewlett Packard
Part Number: HSMY-T600

Full Datasheet: HP Yellow SMD LED PLCC Pkg
