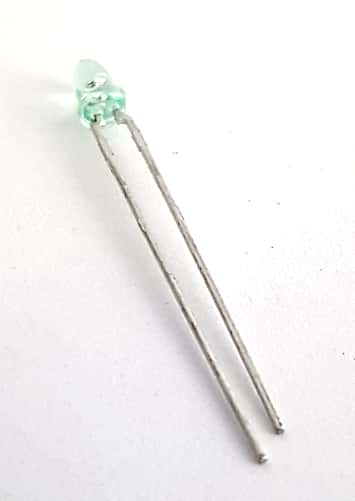

Green 3mm T-1 LED Super Bright Lamp Diffused LP-3341-K2-1-0-0 Osram

Green 3mm T-1 LED Super Bright Lamp Diffused LP-3341-K2-1-0-0 Osram

Manufacturer: Osram
Part Number: LP-3341-K2-1-0-10
Amps: .01
Voltage: 2
Watts: .09
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Green
Temperature: 100
Obsolete: Yes
Termination Method: Solder
Size (mm): 3
Luminous Intensity (mcd): 9 - 11.2

Price: $0.10
33880 available for immediate delivery
Code: LED222APQ07
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Super-Bright LED Lights
Obsolete
Size: 3mm
Color: Pure Green
Lens Transparency: Diffused

Features: Solder leads with stand-off

Maximum Ratings
Forward Current: 30mA
Surge Current: 0.5A
Reverse Voltage: 12V
Power Dissipation: 90mW
Operating Temperature: -55 to 100 Deg. C.

Typical Electrical/Optical Ratings
Peak Wavelength: 557nm
Dominant Wavelength: 560nm
Spectral Line Half-Width: 22nm
Viewing Angle: 40 degrees
Forward Voltage: 2.0V (typ)
Reverse Current: 0.01uA (typ)
Luminous Intensity: 9.0 to 11.2mcd
Optical Efficiency: 0.6 Im//W

Applications:
- Optical indicators
- Coupling into light guides
- Backlighting (LCD, switches, keys, displays, illuminated advertising, general lighting)
- Interior automotive lighting. (e.g. dashboard backlighting, etc.)

Manufactured by: Osram
Part Number: LP-3341-K2-1-1-10

Full Datasheet: Osram T-1 Diffused Pure Green LED
