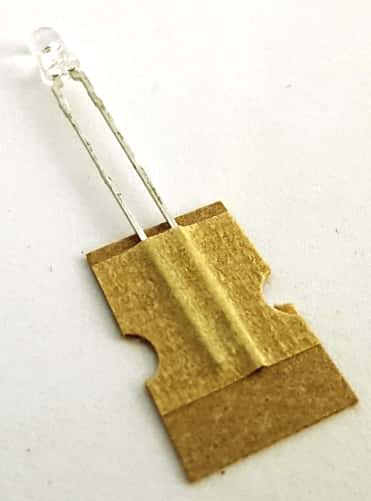

Red 3mm T-1 LED Lamp Clear Lens Osram LS-3336-S2-1-0-020

Red 3mm T-1 LED Lamp Clear Lens Osram LS-3336-S2-1-0-020

Manufacturer: Osram
Part Number: LS-3336-S2-1-0-020
Amps: .02
Voltage: 2
Watts: .08
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Red
Temperature: 100
RoHS Compliant: Yes
Obsolete: Yes
Termination Method: Solder
Size (mm): 3

Price: $0.10
3925 available for immediate delivery
Code: LED225APQ07
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Hyper-Bright LED Indicator Lights
Obsolete
Size: 3mm
Emitted Color: Red
Lens Color: Clear
Lens Transparency: Non-Diffused

Features: Solder leads with stand-off

Typical Electrical/Optical Ratings
Peak Wavelength: 645nm
Dominant Wavelength: 633nm
Spectral Line Half-Width: 16nm
Viewing Angle: 50 degrees
Forward Voltage: 2.0V (typ)
Reverse Current: 0.01uA (typ)

Maximum Ratings
Forward Current: 30mA
Surge Current: 1.0A
Reverse Voltage: 12V
Power Dissipation: 80mW
Operating Temperature: -55 to 100 Deg. C.

Applications:
- Indoor and outdoor displays (e.g. displays for traffic)
- Optical Indicators
- Substitution of micro incandescent lamps
- Backlighting (LCD, switches, keys, displays, illuminated advertising, general lighting)
- Interior automotive lighting. (e.g. dashboard backlighting, etc.)
- Marker lights (e.g. steps, exit ways, etc.)
- Signal and symbol luminaire

Manufactured by: Osram
Part Number: LS-3336-S2-1-0-020

Full Datasheet: Osram T-1 Clear Lens Red LED

RoHS Compliant
