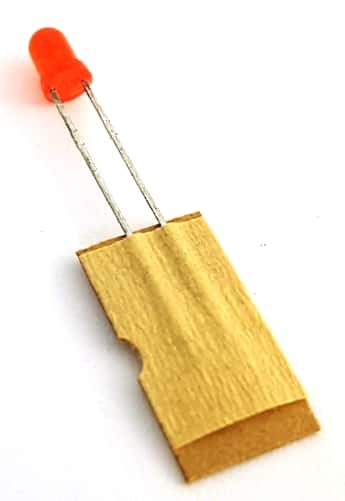

Red 3mm T-1 Led Light Diffused 635nm LTL-1 Lite-On CHE-012

Red 3mm T-1 Led Light Diffused 635nm LTL-1 Lite-On CHE-012

Manufacturer: Lite-On
Part Number: LTL-1CHE-012
Amps: .01
Voltage: 5
Watts: .1
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Red
Temperature: 100
Termination Method: Solder
Size (mm): 3
Luminous Intensity (mcd): 12.6

Price: $0.10
3925 available for immediate delivery
Code: LED226APQ07
Weight: 0.01oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

LED Indicator Lamps
Size: 3mm
Color: Red
Lens Transparency: Diffused

Features:
- Low Power Consumption
- High Efficiency
- Vestatile Mounting-on PC Board or panel
- I.C. Compatiible, Low Current Requirement

Maximum Ratings
Peak Forward Current: 90mA
DC Forward Current: 30mA
Reverse Voltage: 5V
Power Dissipation: 100mW
Operating Temperature: -55 to 100 Deg. C.

Electrical/Optical Ratings
Luminous Intensity: 12.6mcd
Peak Wavelength: 635nm
Dominant Wavelength: 623nm
Spectral Line Half-Width: 40nm
Viewing Angle: 60 degrees
Forward Voltage: 2.0V (typ)
Reverse Current: 100uA (typ)

Manufactured by: Lite-On
Part Number: LTL-1CHE-012

Full Datasheet: Lite On T1 High Efficency Red LEDs
