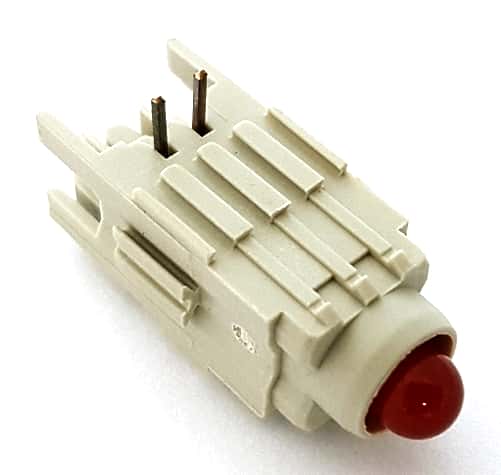

Red 5mm Single LED Indicator Light RA Long Type Schroff 690040-50

Red 5mm Single LED Indicator Light RA Long Type Schroff 690040-50

Manufacturer: Schroff
Part Number: 690040-50
Amps: .02
Voltage: 3
Watts: .1
Mounting: Right Angle
Number Leads/Terminals: 2
Color: Red
Temperature: 85
Termination Method: Solder
Luminous Intensity (mcd): 4.4

Price: $1.25
950 available for immediate delivery
Code: LED245APQ08
Weight: 0.10oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

2 Pin Single Color LED Lights in Holders
Standard Red
Right Angle Mounting

Reverse Voltage: 5.0V
On-State Current: 25mA
Power Dissipation: 100mW (max)
Forward Current: 100mA (max)
Forward Voltage: 3.0V (max)
Operating Temperature: -40 to 85 Degrees C
Viewing Angle: 50 Degrees
Luminous Intensity (@ 20mA): 4.4mcd
Dominant Wavelength: 635nm

Dimensions:
Overall Length: 27.3mm (1.07")
Width: 10.64mm (0.42")
Height: 10.64mm (0.42")

Manufactured by: Schroff (Pentair)
Part Number: 690040-50

Full Datasheet: T1-3/4 LEDs in Holder Standard Red
