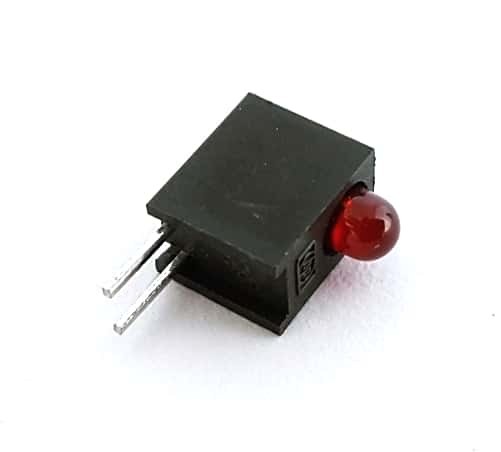

Red 3mm LED Single Circuit Board Indicator Lamp Dialight HLMP1700-101

Red 3mm LED Single Circuit Board Indicator Lamp Dialight HLMP1700-101

Manufacturer: Dialight
Part Number: HLMP-1700-101
Amps: .007
Voltage: 1.5
Mounting: Right Angle
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 2
Color: Red
Temperature: 100
Termination Method: Solder
Size (mm): 3
Luminous Intensity (mcd): 1.8

Price: $0.50
2979 available for immediate delivery
Code: LED247APQ08
Weight: 0.10oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

LED CBI Array Lights

LED Size: 3mm (T-1)
LED Shape: Round Domed Top
Lens Color: Red
Mounting: Right Angle

Peak Wavelength: 635nm
Millicandela Rating: 1.8mcd
Forward Voltage: 1.5V
Reverse Voltage: 5.0V
Test Current: 2mA
Viewing Angle: 50 Degrees

Maximum Ratings
DC Forward Current: 7.0mA
Operating Temperature: -55 to 100 Degrees C

Holder Dimensions:
Width: 4.64mm (0.182")
Height: 7.44mm (0.292")
Depth: 6.42mm (0.252")
Centerline Height: 4.96mm (0.20")

Manufactured by: Dialight
Part Number: HLMP1700-101

Full Datasheet: Dialight Single Red 3mm CBI Right Angle T1 LED in Holder
