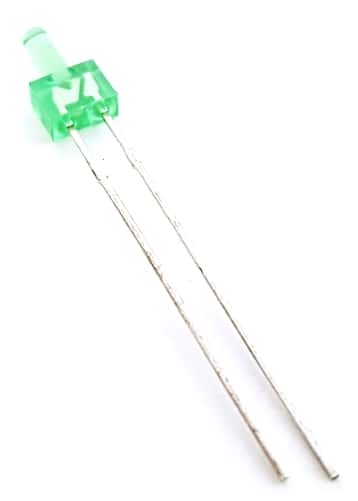

Green 2mm Flat Top LED Light Diffused Avago L-13GD

Green 2mm Flat Top LED Light Diffused Avago L-13GD

Manufacturer: Kingbright
Part Number: L-13GD
Capacitance (uF): .000015
Amps: .02
Voltage: 2.2
Watts: 0.0625
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Green
Temperature: 85
Termination Method: Solder
Size (mm): 2
Luminous Intensity (mcd): 12

Price: $0.20
874 available for immediate delivery
Code: LED259APQ08
Weight: 0.01oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Flat Top Panel Mount LEDs

Size: 2mm (Fits 2mm hole in panel up to 3.5mm (.138")
Color: Green
Transparency: Diffused

Features:
- Mounts flush with panel
- Low power consumption
- Suitable for audio panel indicator
- Long life - solid state reliability

Maximum Ratings
DC Forward Current: 25mA
Peak Pulsed Forward Current: 140mA
Reverse Voltage: 5.0V
Power Dissipation: 62.5mW
Operating Temperature: -40 to 85 Deg. C.

Typical Electrical/Optical Ratings
Peak Wavelength: 565nm
Dominant Wavelength: 568nm
Spectral Line Half-Width: 30nm
Luminous Intensity: 12.0mcd (typ.)
Viewing Angle: 70 degrees
Forward Voltage: 2.2V
Reverse Current: 10uA
Capacitance: 15pF

Manufactured by: Kingbright
Part Number: L-13GD

Full Datasheet: Kingbright 2mm LED Lamp 565nm L-13GD
